Blog Home Installation cases
Nov. 28, 2016

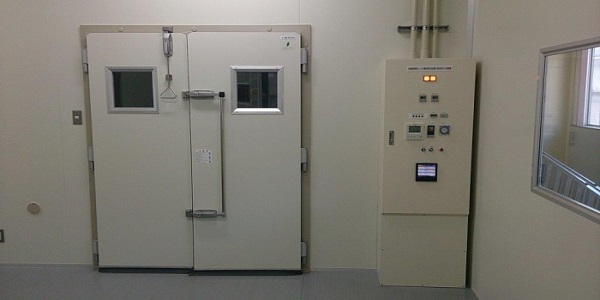

Indoor Farm at Fukui, Japan
Indoor farm, model TPFA-15. This system has been installed for education of indoor farm cultivation in Fukui Prefecture High School, Japan.
- Cultivation cabinet : Two lines and three stairs
- Light source : White LEDs for cultivation
- Controllable conditions : Temperature, CO2 concentration, EC, and pH
Nov. 21, 2016

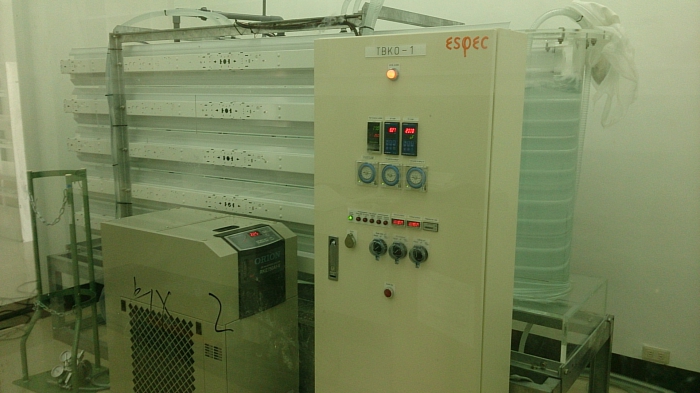

Alagal Culture System in Filippine
Alagal culture system, model TBKO-1A. This system has been installed in Guiuan, Filippine.
- Water volume : 1000 L
- Material of tank : Acrylic
- Temperature range : 10~25 °C
- Light intensity : 200 µmol/㎡/s
- Airation : over 100 L/min
June 30, 2016

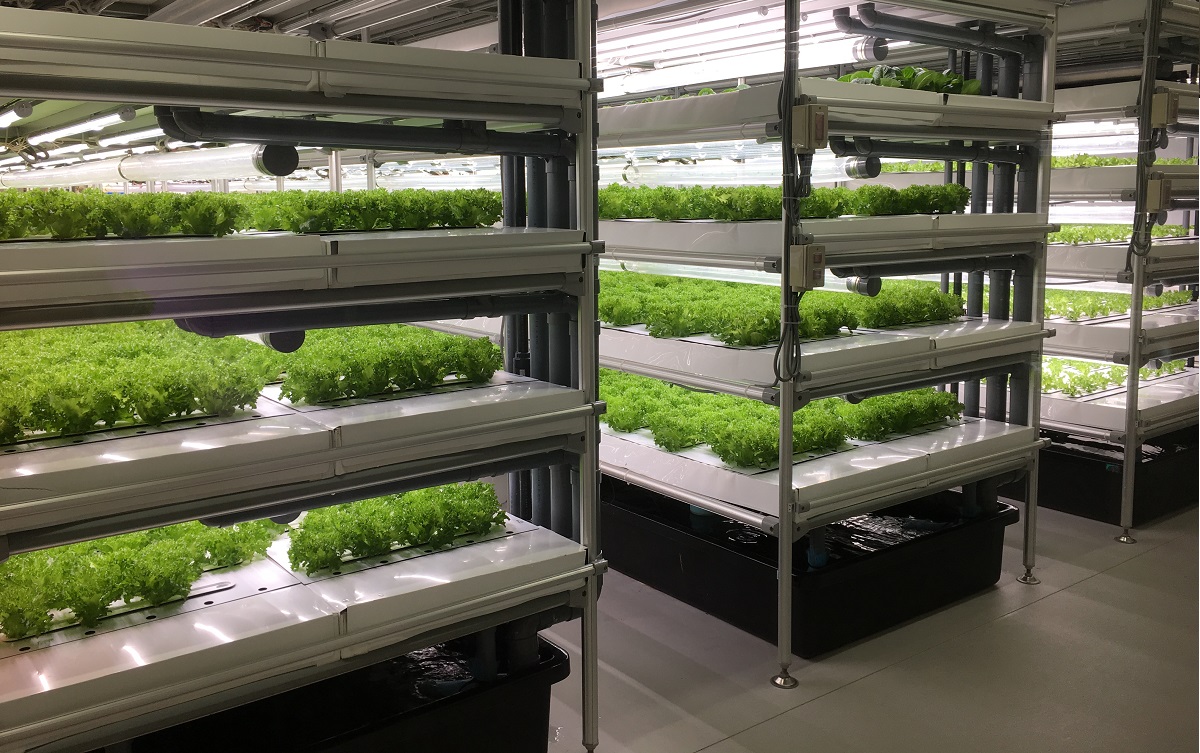

Indoor Farm at Haneda Lab., Japan
VegetaFarm Haneda is our production scale indoor farm. Some leafy lettuces are cultivated hydroponically. This indoor farm is middle scale facility of our products, and about 900 heads of lettuce can be harvested every day.
- Farm size : W950 x H2642 x D1800 mm
- Production capacity : about 900 heads of lettuce
- Monitoring conditions : Temperature, humidity, CO2 concentration, EC, pH, and electricity consumption
- Controllable conditions : Temperature, CO2 concentration, EC, and pH
- Light source : White LEDs
