Dec. 5, 2016

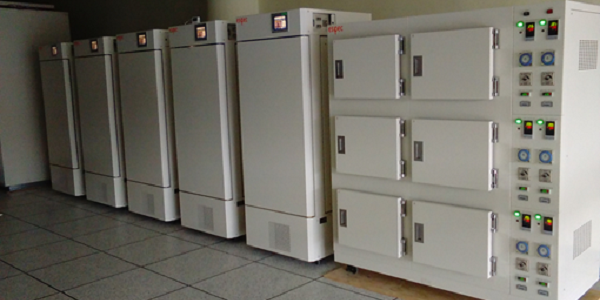

Growth Cabinet at Korea

Growth cainet, model TGC-130H. This system has been installed in Rural Development Administration, Korea.

  • Outer and inner size : Outer) W720 x H1859 x D795 mm, Inner) 280 L
  • Temperature range : 10~50 °C at light ON, and 5~50 °C at light OFF
  • Huidity range : 55~90%RH at 15~35 °C
  • Illumination rage : 0~15,000 lux (Dimmer system) using LEDs
  • Power : AC100 V, 1 φ, and 15 A

Nov. 28, 2016

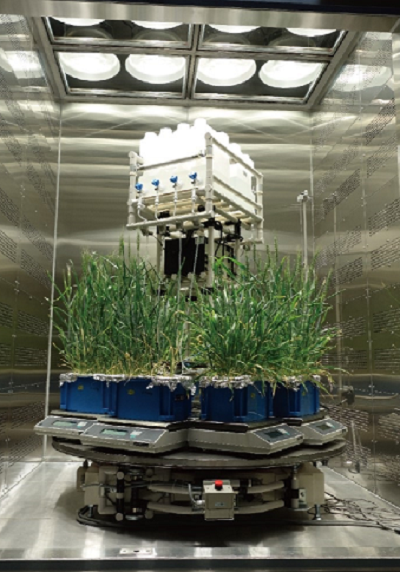

Arid Land Simulated Growth Chamber at Tottori, Japan

Growth chamber, model TGH-4-2ST. This system has been installed in Arid Land Research Center, Tottori University, Japan. TGH-4-2ST can produce arid land conditions (i.e. heavy wind, high and low temperature, low humidity, high light intensity etc.).

  • Whole size : W2630 x H4000 x D3360 mm (with front, air conditioning, and lamp room)
  • Research room size : W1800 x H1800 x D2500 mm
  • Temperature range : 5~50 °C at light ON and OFF (Proguram control)
  • Huidity range : 5~70%RH at light ON, and 5~90%RH at light OFF (Program control)
  • Light source : LEDs for cultivation
  • Power : AC200 V, 3 φ, 3 W, 60 Hz, and 250 A. AC100 V, 1 φ, 2 W, 60 Hz, and 20 A

Nov. 14, 2016

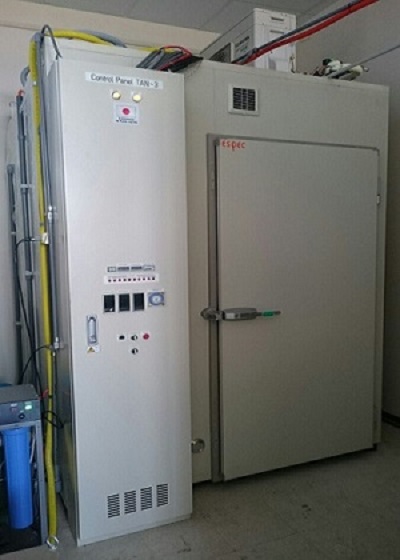

Artificial Light Type Nursery System at Bolivia

Growth chamber for nursery, model TAN-3 (2.9 ㎡) and TAN-12 (12.3 ㎡). This system has been installed in University of San Simon, Bolivia.

  • Outter size : TAN-3) W1800 x H1800 x D2360 mm, TAN-12) W3600 x H3600 x D2360 mm
  • Temperature range : 5~35 °C
  • Huidity range : 60~95%RH (Controllable)
  • CO2 concentration range : 400~2000 ppm
  • Light source : Fluorescent lamp or LEDs
  • Power : AC200 V, 3 φ, 3 W, 50/60 Hz
